Self Service Kiosk

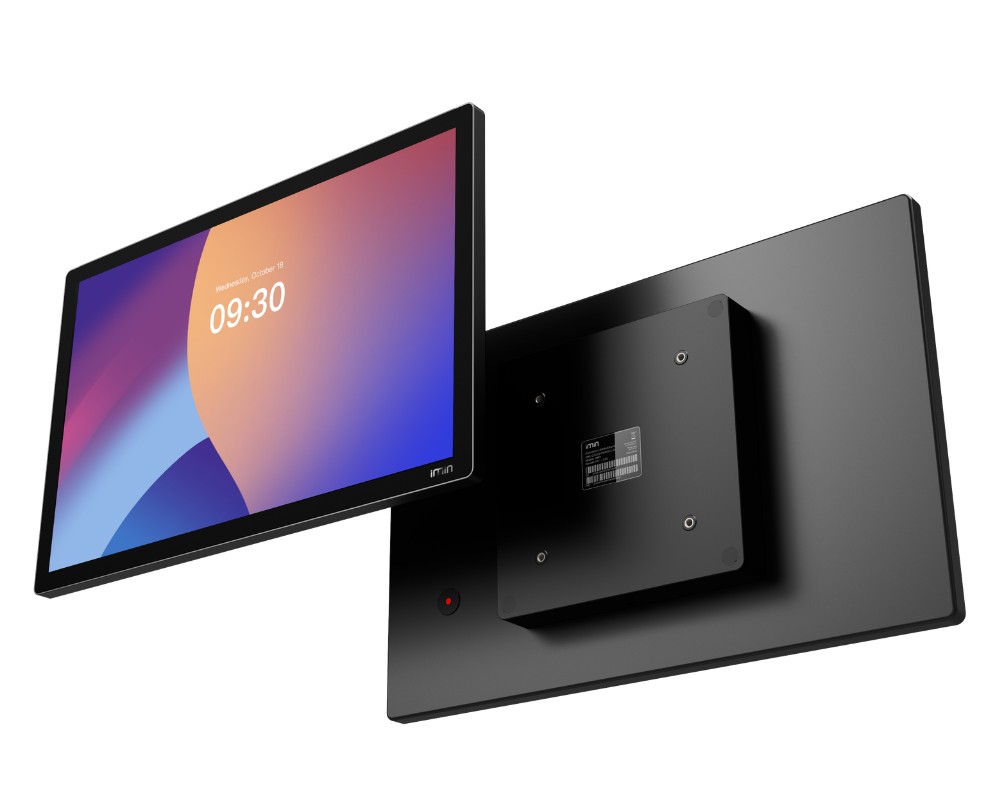

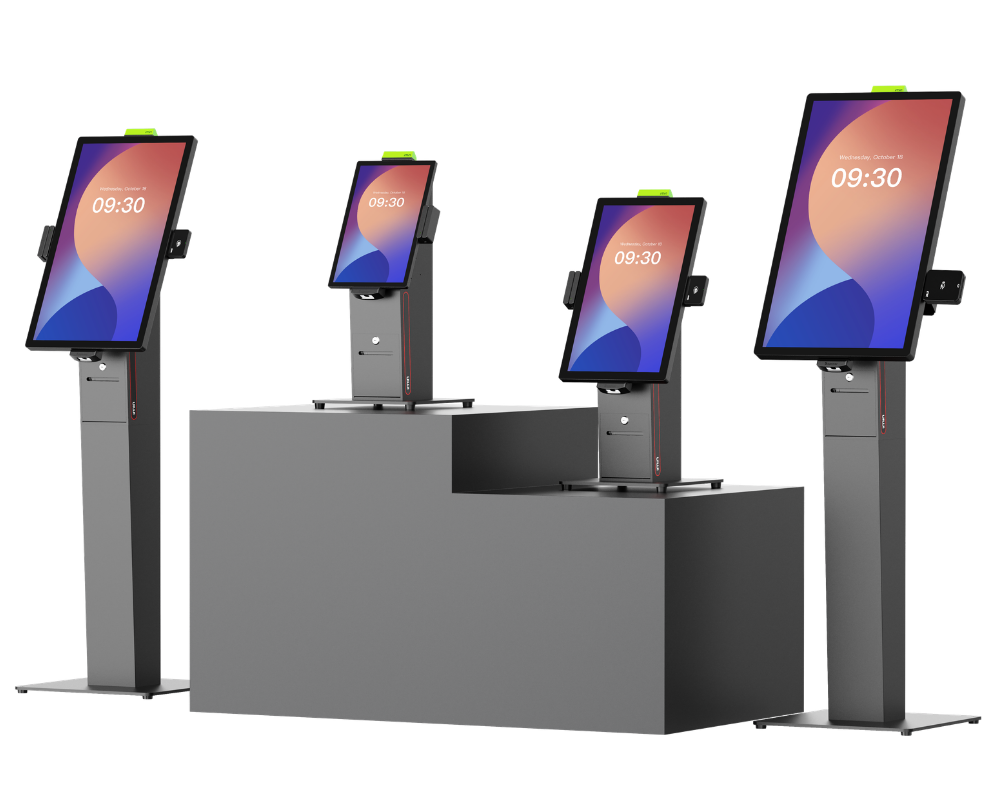

iMin Crane 1

The Crane 1 is a groundbreaking kiosk that redefines modularity and tackles the challenges of a modern business landscape by providing different solutions through the deployment of different modules.

iMin’s masterclass in flexible and innovative product design.

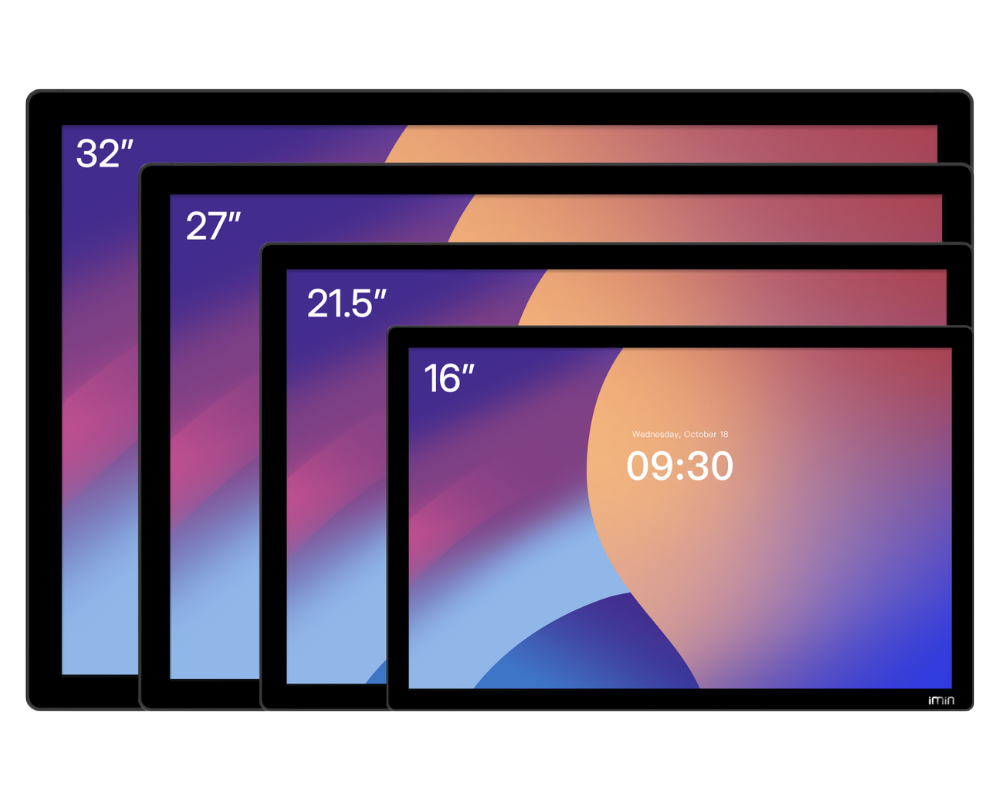

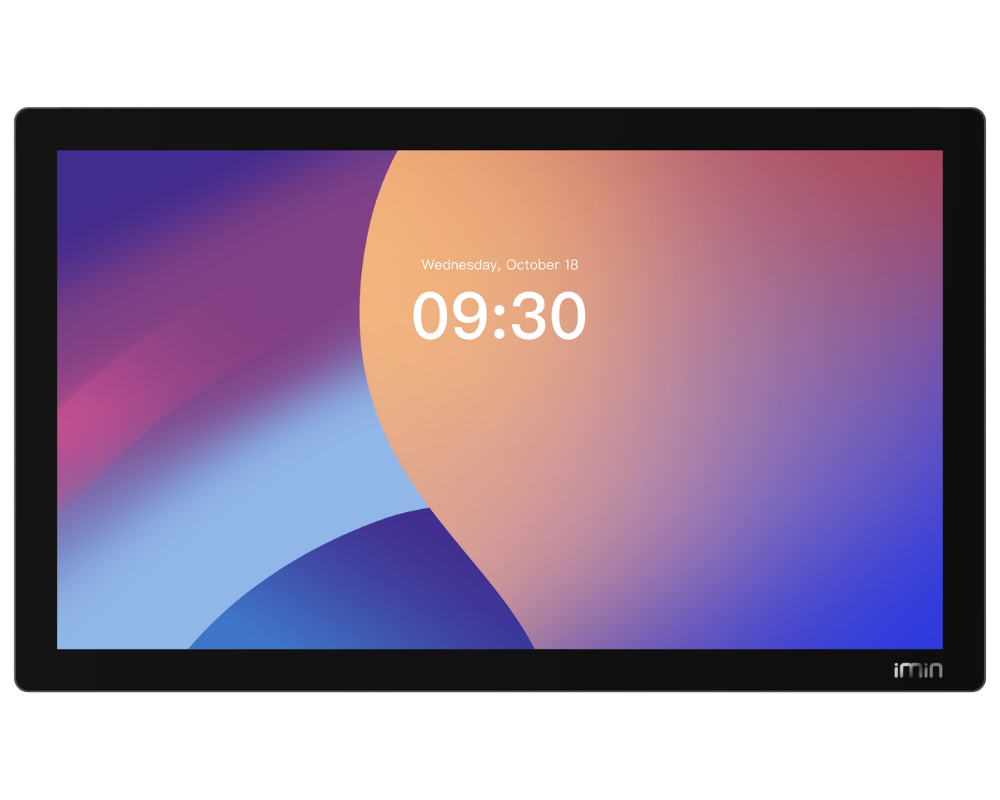

Main Display

Minimalistic and modern design available sizes to choose from

Facilitate a unique and smooth checkout experience for your customers.

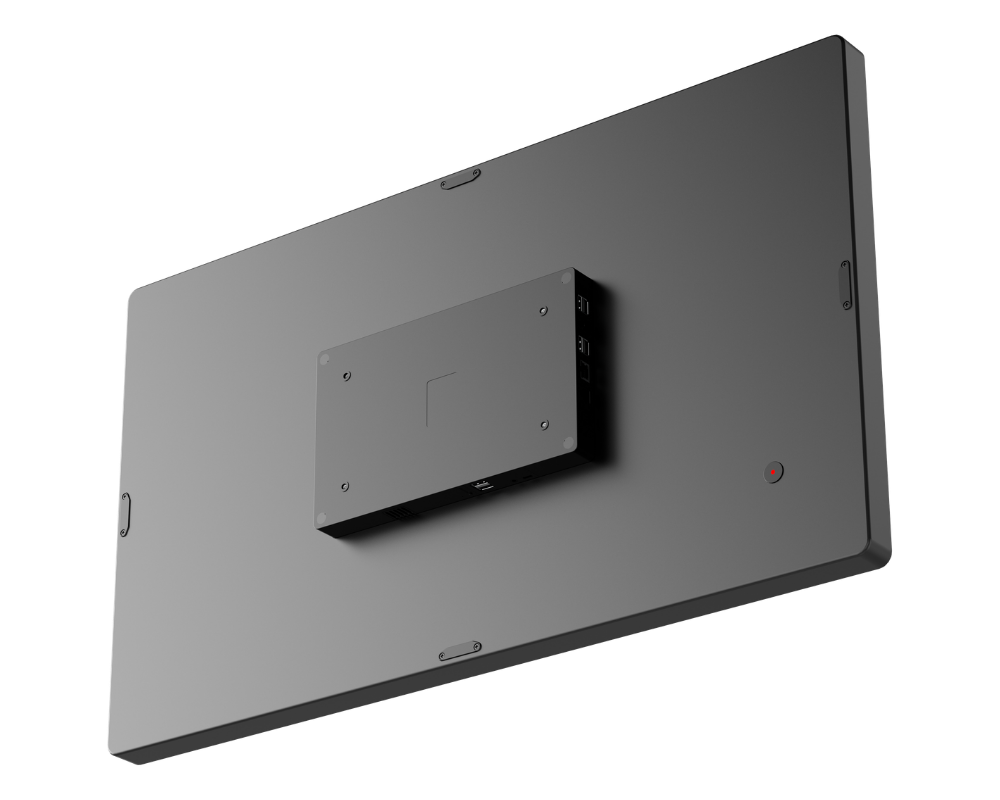

Secondary Display

Optional purchase to suit your business needs, 1920 x 1200

Recommended Stand Configuration

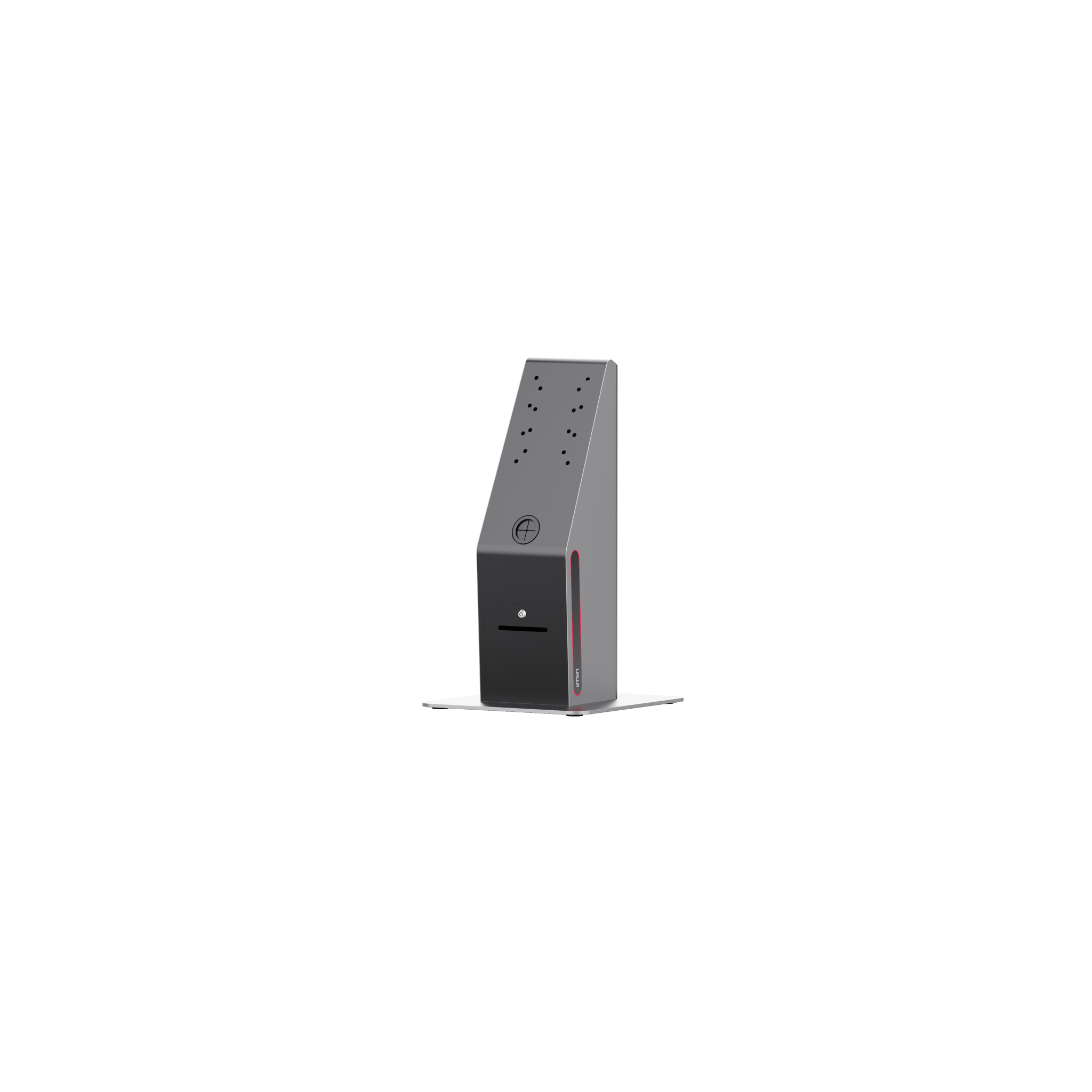

Table Stand

for 16"/21.5"/27" display

Recommended Stand Configuration

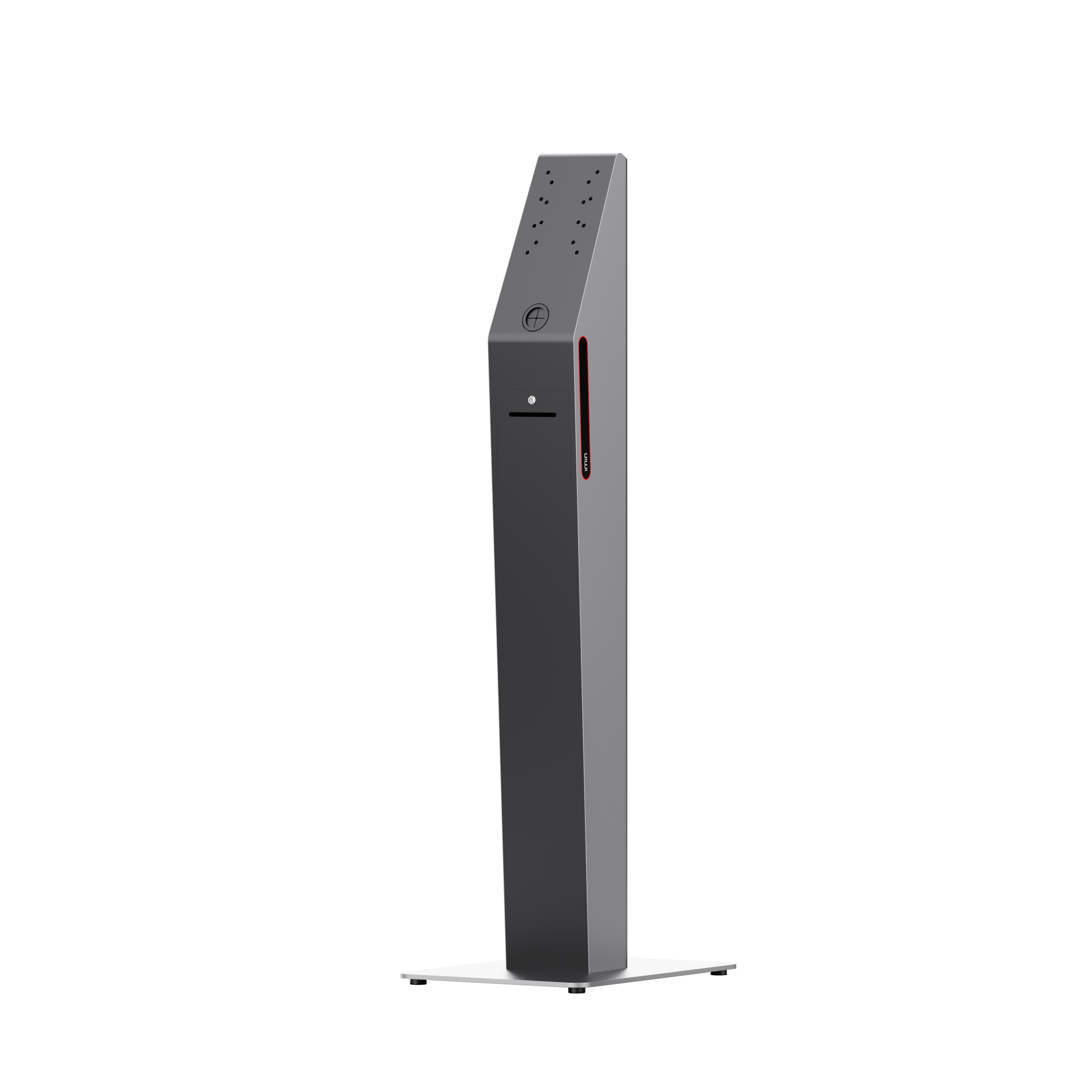

Floor Stand

for 21.5"/27"/32" display

Accessories

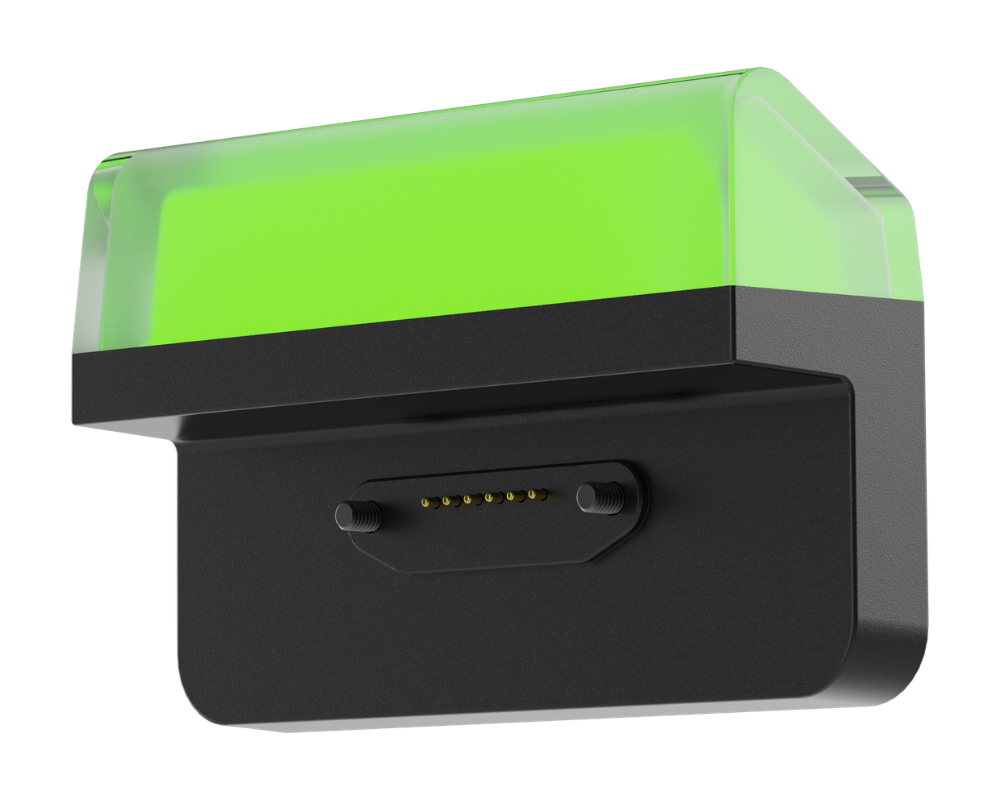

Status Light

Accessories

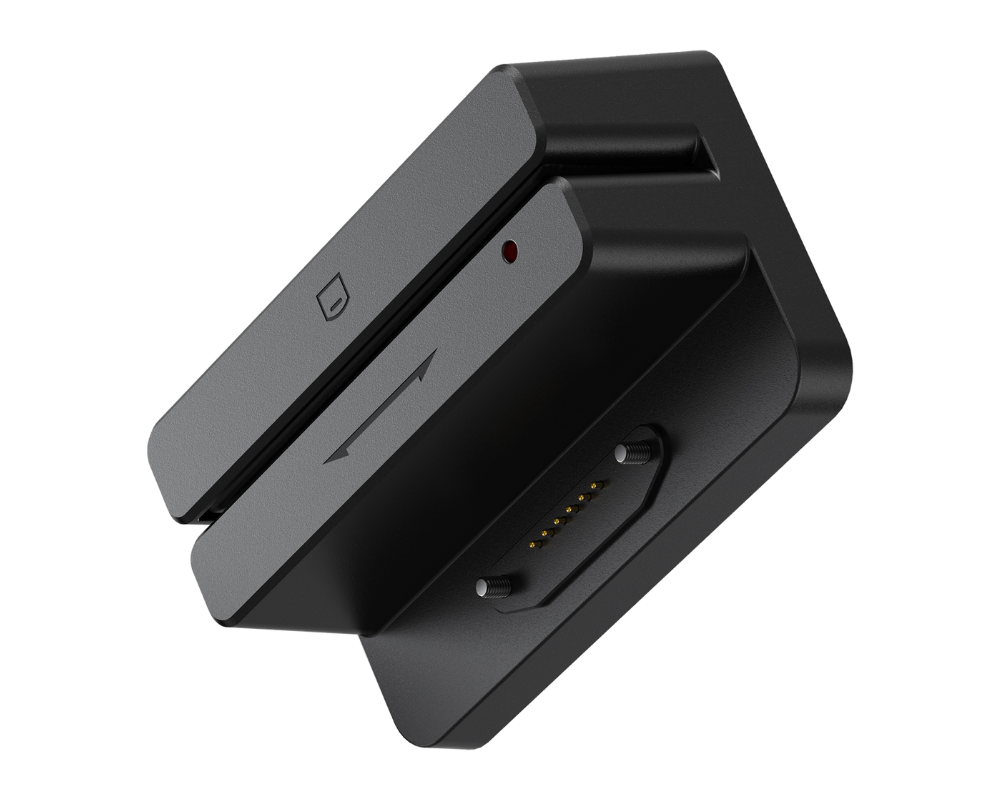

MRS Reader

Accessories

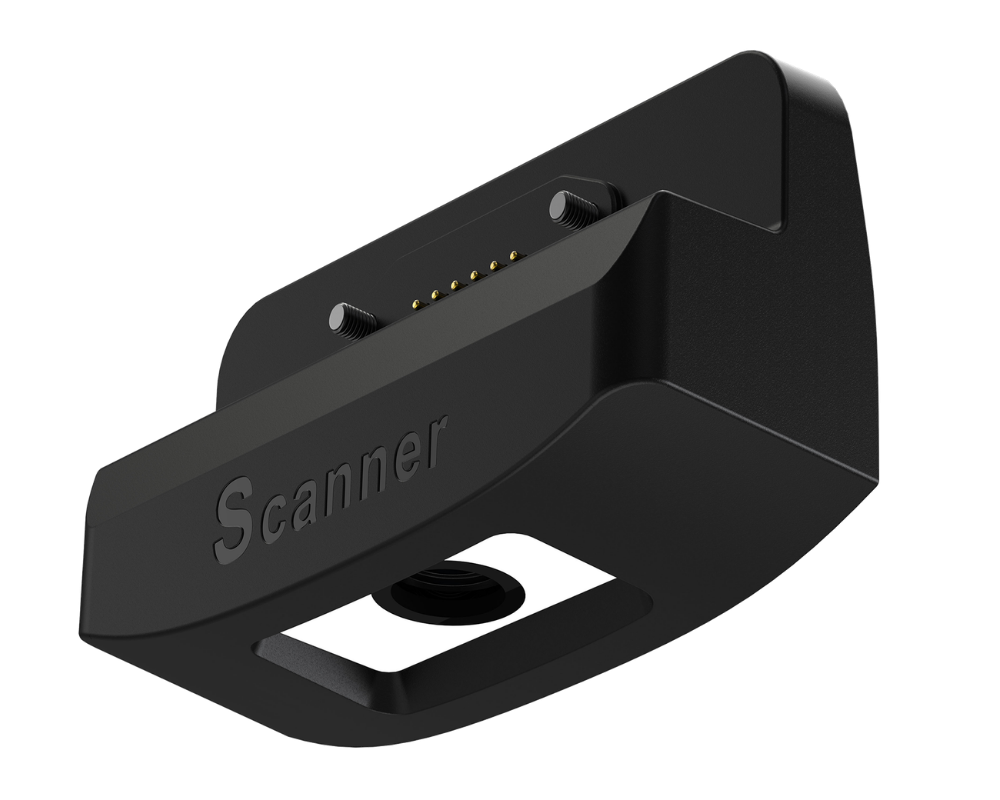

Scanner

Accessories

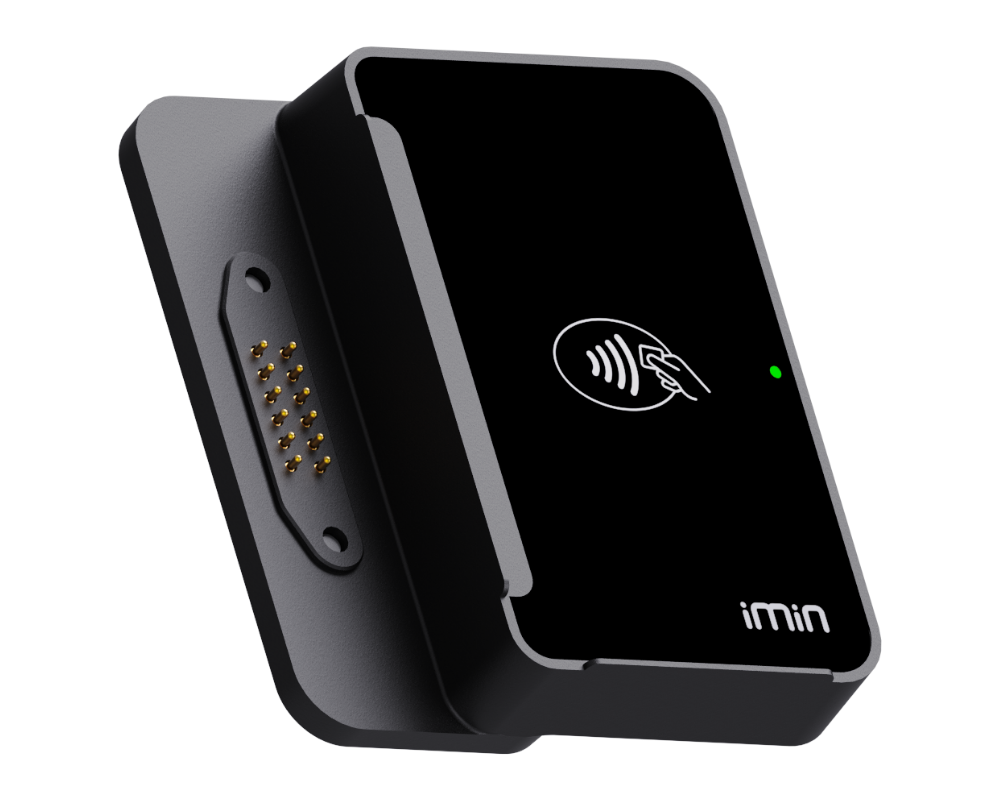

NFC Module

Fast, stable, efficient.

Tailored for high-volume operations with an advanced octa-core processor and generous memory configuration. Handle intense workloads during peak hours and process multiple tasks with ease. Powered by Android 13 for better app compatibility, resource management, and security.

Create a unique solution that works for you.

Processor

Octa-Core (Dual-Core Arm Cortex-A78 2.2GHz, Hexa-Core Arm Cortex-A55 2.0GHz)

Touch Panel

10 Point Capacitive Touch Panel ; Secondary Display (Sold Separately)

Memory

4GB RAM + 64GB ROM or 8GB RAM + 128GB ROM

Operating System

Android 13, 64 bit

Connectivity - Wireless

Wi-Fi 6, 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

Connectivity - Ethernet

1000M, Bluetooth 5.3

Speaker

3W Mono

Operating temperature

-10 ~ 50℃

Storage temperature

-20 ~ 60℃

Power Adapter

Input: 100 ~ 240V, Output: 24V / 2.5A

Peripheral Ports

USB Type_A 2.0 x 6, USB Type_C x 1, RJ12 x 1, RJ11 x 1, RJ45 x 1, DC Jack x 1, 3.5mm Audio Jack x 1, 16” Display: USB Pogo Pin x 2, USB+I2C Pogo Pin x 1, 21.5” / 27” / 32” Display: USB Pogo Pin x 3, USB+I2C Pogo Pin x 1

Main Display Dimensions & Weight - 16inch

375 x 246 x 36.5mm & 1.6kg

Main Display Dimensions & Weight - 21.5inch

525 x 316.7 x 46.5mm & 4.8kg

Main Display Dimensions & Weight - 27inch

645.5 x 384 x 47.5mm & 7.3kg

Main Display Dimensions & Weight - 32inch

746.5 x 441 x 56.5mm & 9.3kg

Secondary Display Dimensions

16” Display: 375 x 246 x 36.5mm

Secondary Display Weight

16” Display: 1.4kg

Certification

FCC CE IMDA WEEE
