80mm 熱感票據印表機
Thermal Receipt Printer

EC-PM-X5

The EC-PM-X5 bill printer is a device specifically designed for printing commercial bills, such as receipts, invoices, orders, shipping notes, etc. This type of printer usually has the characteristics of high efficiency, stability, and easy operation, and is suitable for various commercial places, such as supermarkets, restaurants, hotels, retail stores, etc.

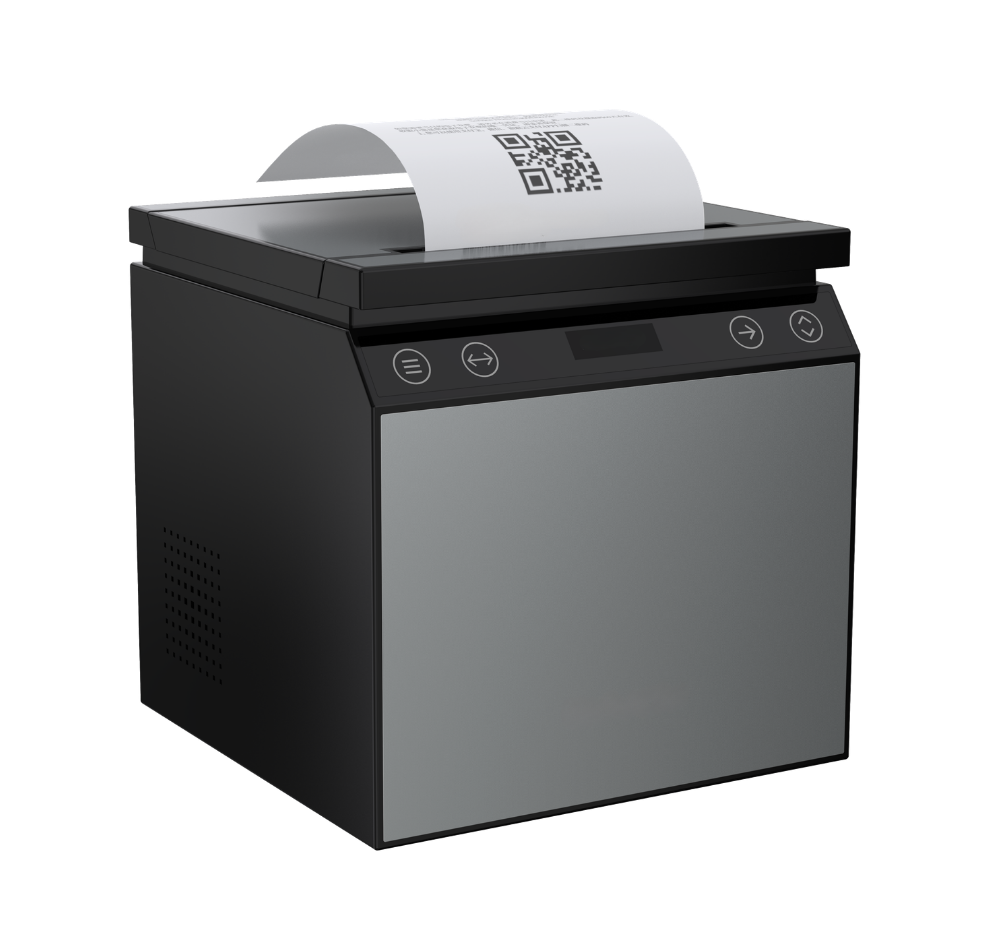

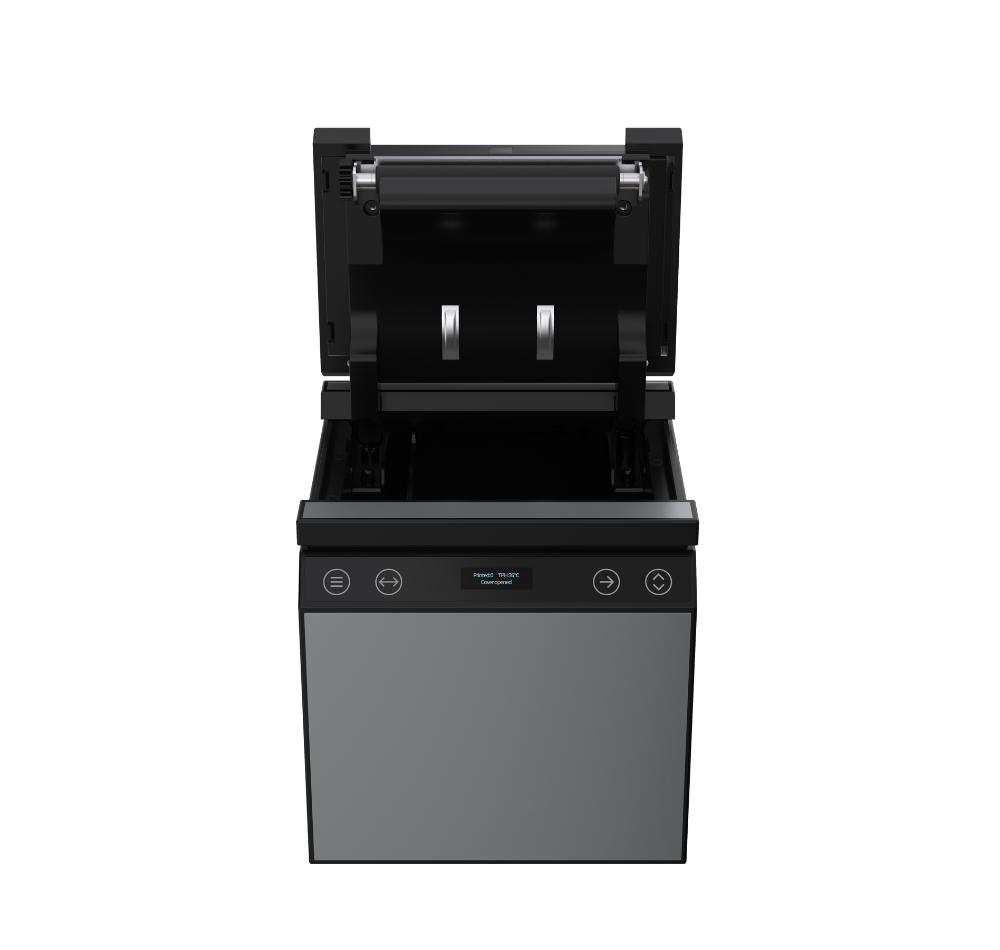

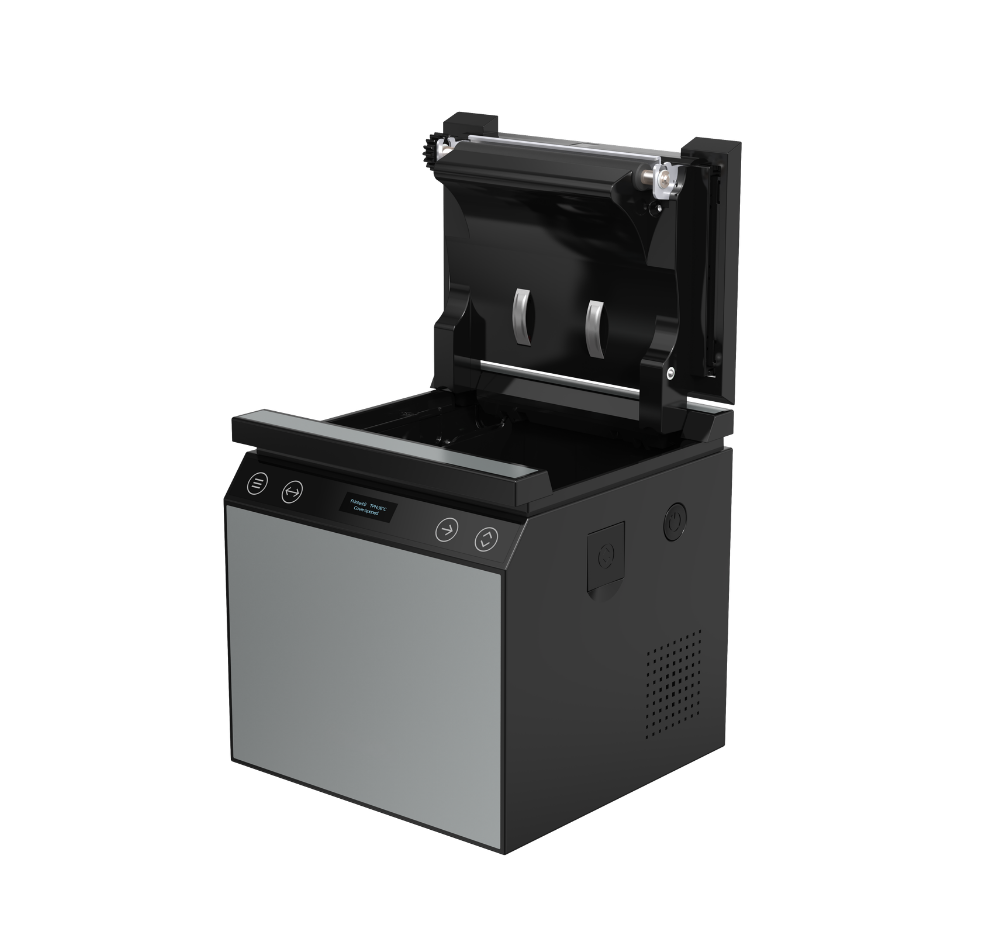

Upper Output Mode

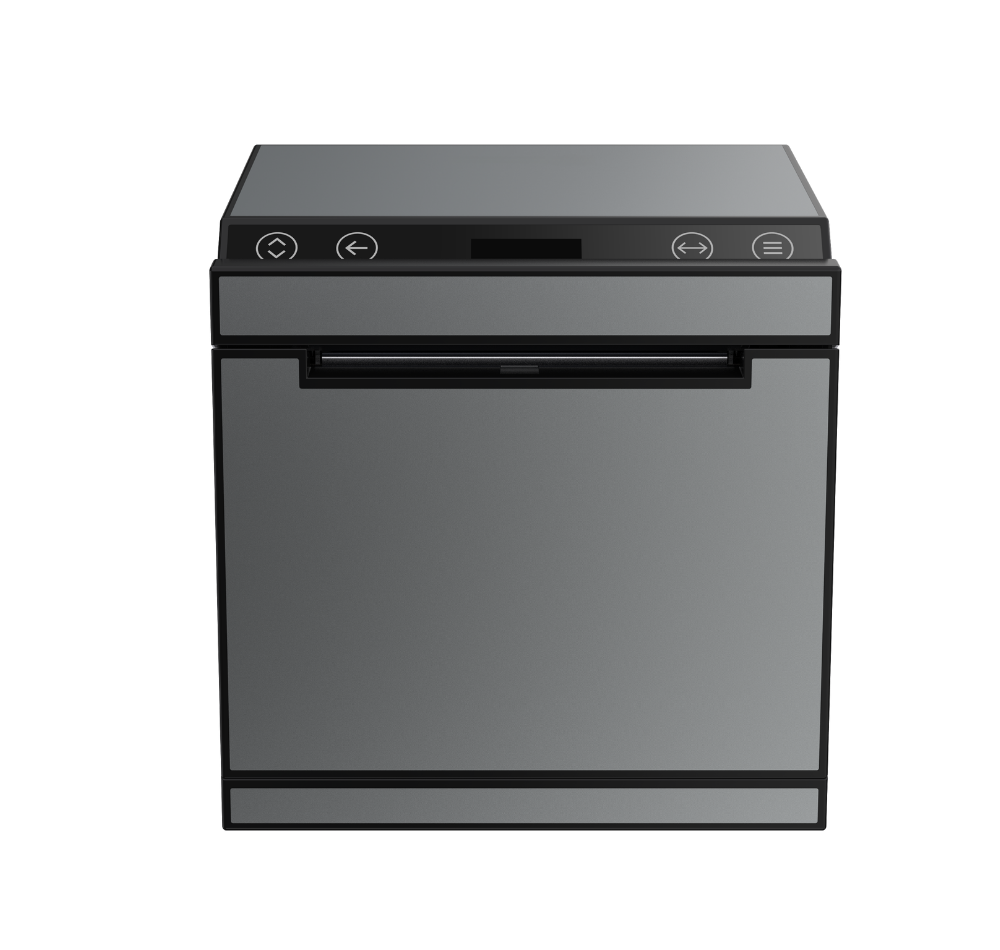

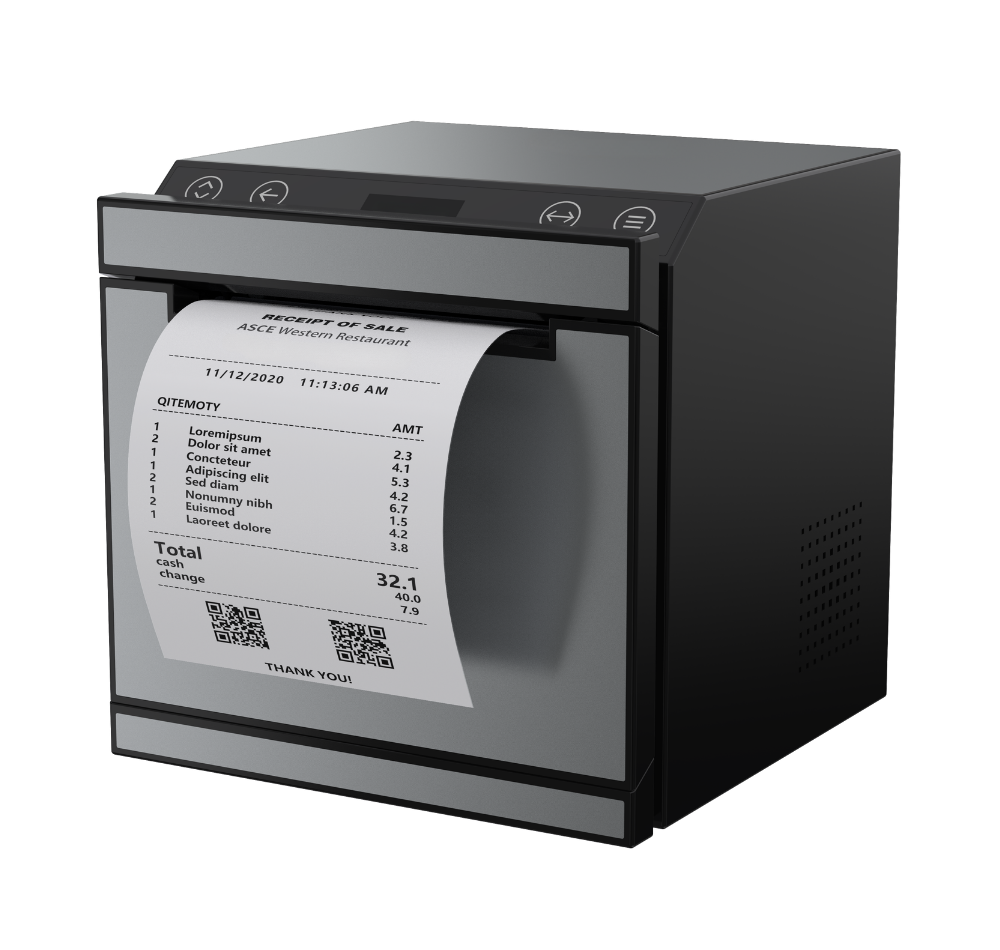

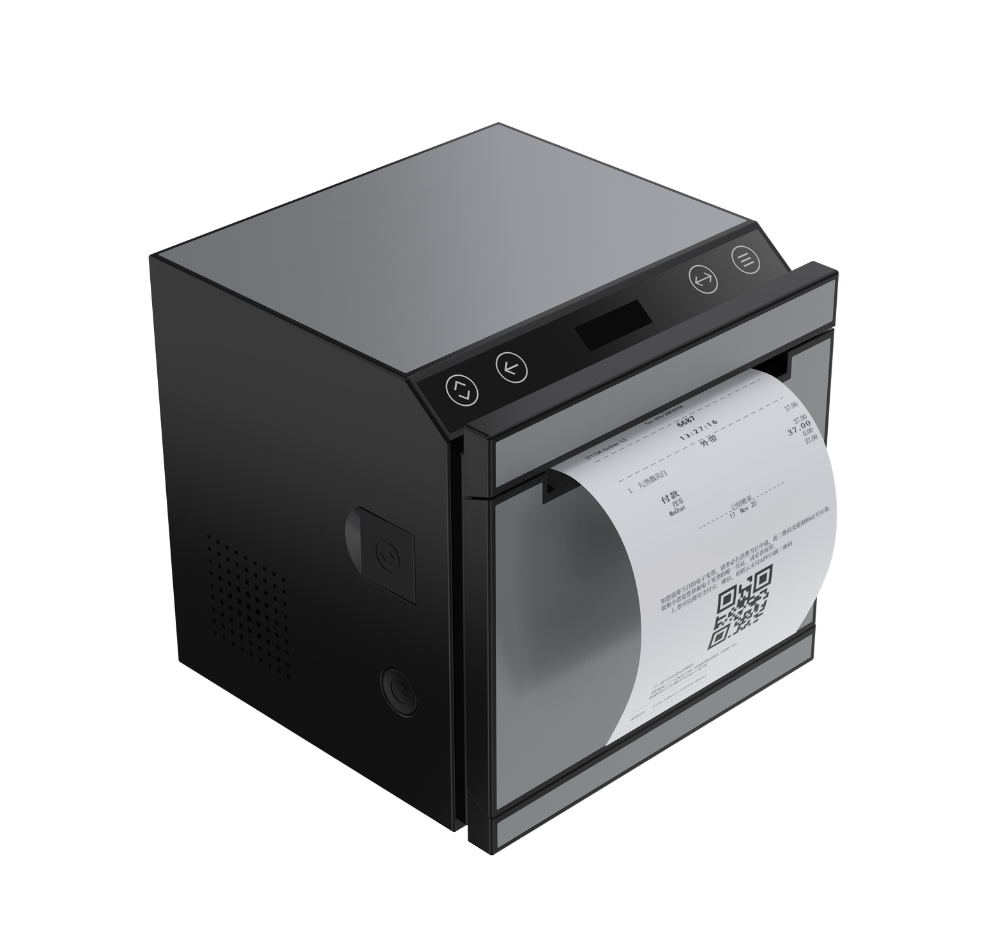

Front Output Mode

Product Features

- Front-exit and upper-exit with auto cutter, cube design
- Advanced touch operation and LCD display for printers
- 203dpi print resolution, 300mm/s print speed to set new industry standard
- Ideal for tabletop, under-counter and kiosk space
- Windows, Linux, OPOS, JPOS driver available

Technical Specifications

Printer Model

EC-PM-X5

Print Method

Direct Thermal

Emulation

ESC/POS

Paper Width

79.5 ±0.5 x 80mm, 57.5±0.5 x 80mm

Print Width

72mm

Resolution

8dots/mm(203DPI)

Max. Paper Diameter

80mm

Print Speed

300mm/sec

Paper Thicknes

0.06~0.08mm

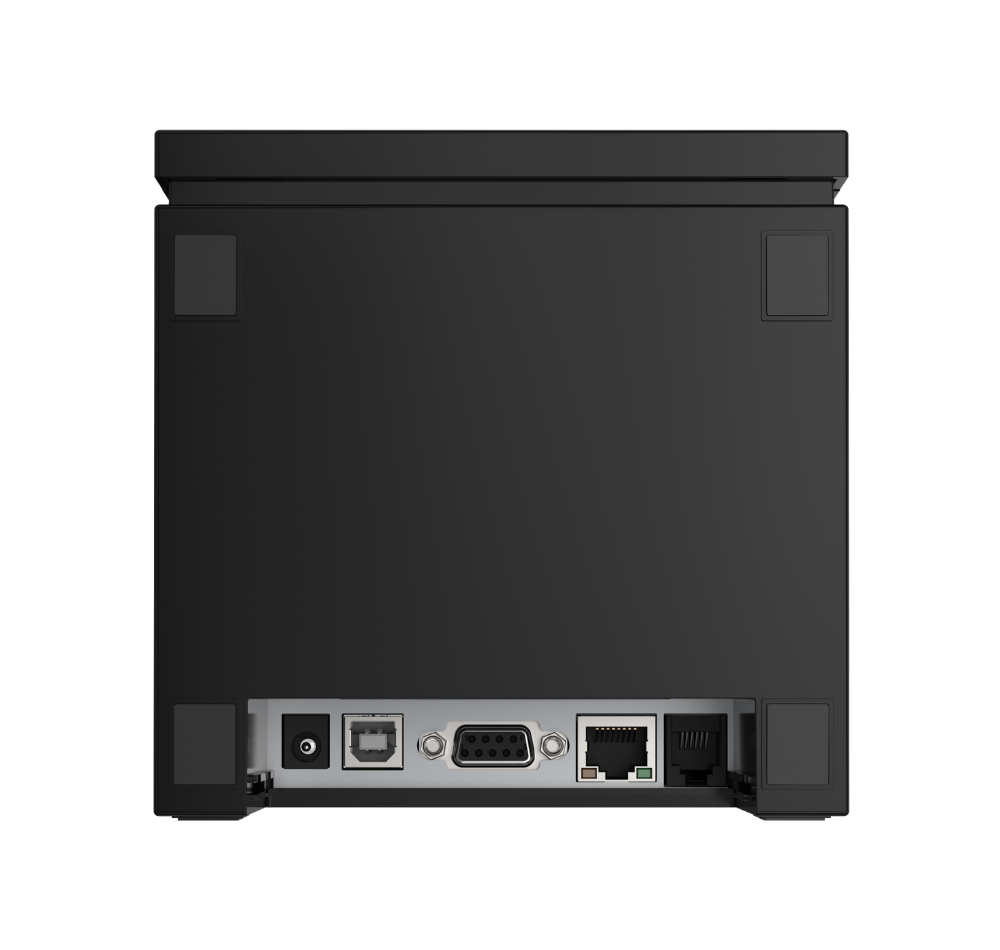

Interface

USB 2.0 + Serial + Ethernet + RJ11 Cash Drawer

Interface - Optional

Wi-Fi / Bluetooth / 4G Network

Barcode Type - 1D

UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13,CODE39, ITF, CODABAR, CODE93,CODE128

Barcode Type - 2D

QRCODE

Power Supply

External universal switching power supply

Power Supply - Input

AC 100-240V, 1A, 50-60Hz

Power Supply - Output

DC 24V, 2.5A, 60W

Cash Drawer

24V/1A

Print Head Life

150 km print length or 100 million pulses

Auto Cutter Life

1.5 million cuts

Operating System

Support Windows、Linux、Mac Driver

Net Weight

1.5KG

Dimension

130mm(L) x 130mm(W) x 130mm(H)
