• Multi Payment Modules Self Service Kiosk
• Optional Wall Mount / Floor Stand
• Multi Size : 21.5" / 27" / 32"
• 10 points Capacitive Touch Panel
• Certificate of Registration of Design Number :
1913688.4M002 (Wall Mount)
1913688.4M001 (With Stand)
| Processor | Intel® Core i3-1115G4 up to 4.10G Dual-Core. Intel® Core i5-1135G7 up to 4.20G Quad-Core |
Operating System | Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu) |
| Memory | DDRIV-2666/2933/3200 8GB (up to 32GB) | Display Size | 21.5” / 27” / 32” |
| Storage | 256GB SSD, Kingston | Resolution | 1080 x 1920 (16:9) |
| Power Input | AC 100-240V | Brightness | 350cd/m² |
| Power Output | DC 12V/5A | Backlight Type | LED |
| Touch | 10-point Projected Capacitive Touch | Viewing Angle | 80°/80°/70°/70° (Up/ Down/ Left/ Right) |
| Built-In Scanner | 2D Scan Mode | Buil-In Thermal Printer | 250 mm/s Speed, Max. 72mm Width |

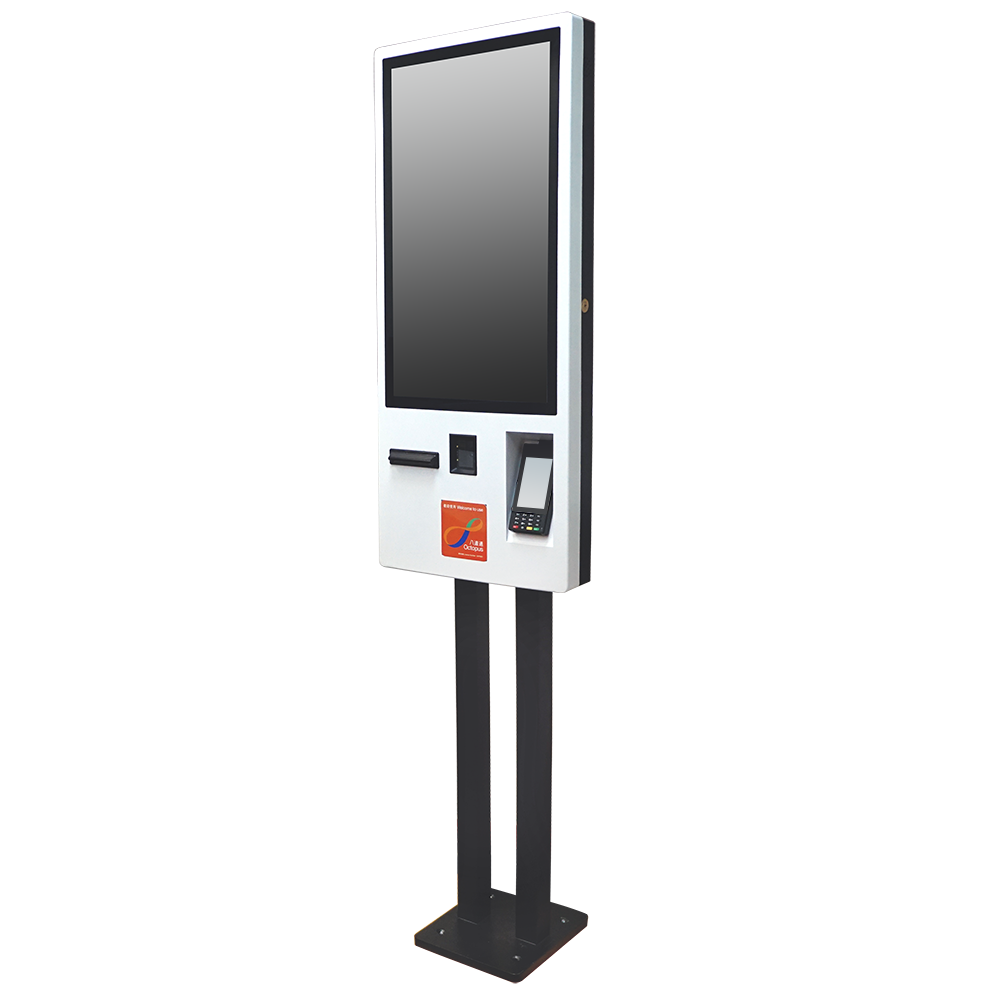

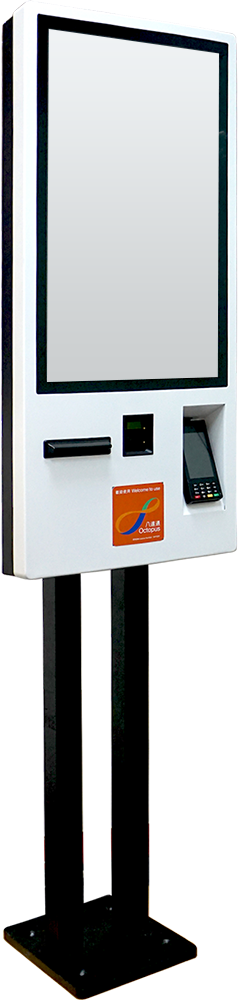

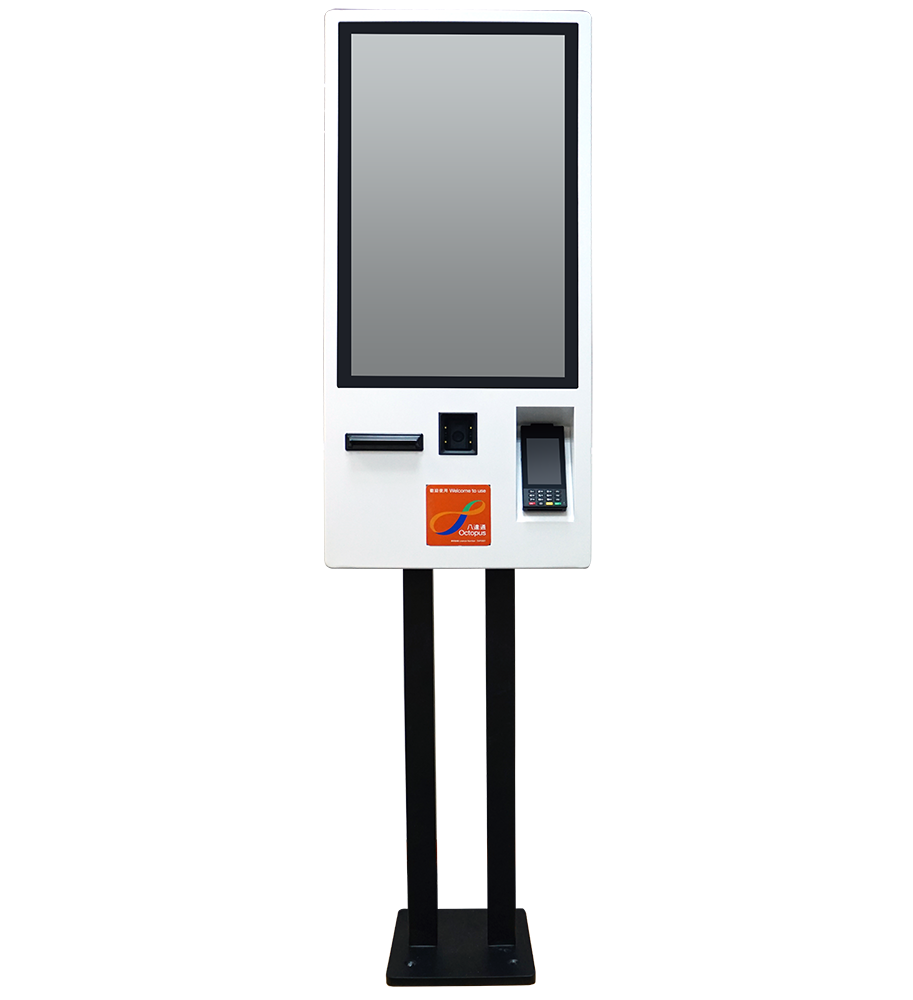

| Dimension – Floor Stand A | 175H x 300W x 320Dmm | Net Weight – Floor Stand A | 15KG |
| Dimension – Floor Stand B | 175H x 490W x 490Dmm | Net Weight – Floor Stand B | 20KG |
| Dimension – Floor Stand C | 185H x 490W x 490Dmm | Net Weight – Floor Stand C | 25KG |

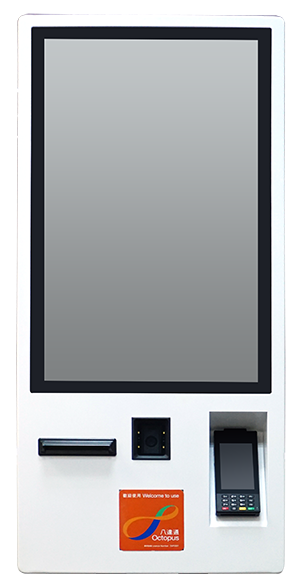

| Dimension – 21.5” Wall Mount | 840H x 421W x 130Dmm | Net Weight – 21.5” Wall Mount | 36KG |
| Dimension – 27” Wall Mount | 960H x 423W x 132Dmm | Net Weight – 27” Wall Mount | 39KG |
| Dimension – 32” Wall Mount | 1060H x 478W x 134Dmm | Net Weight – 32” Wall Mount | 56KG |
| Safety | FCC / CE / ROHS | IP Rating (Optional) | IP 54 |
